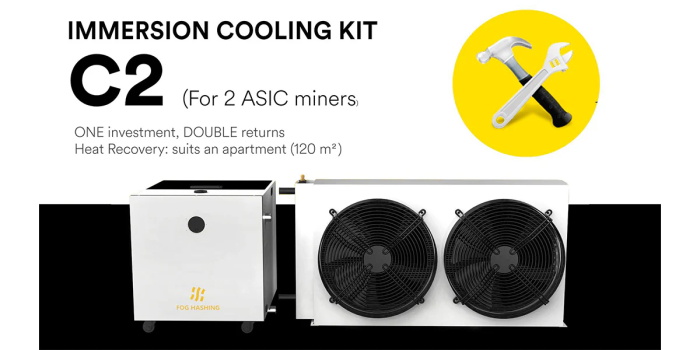

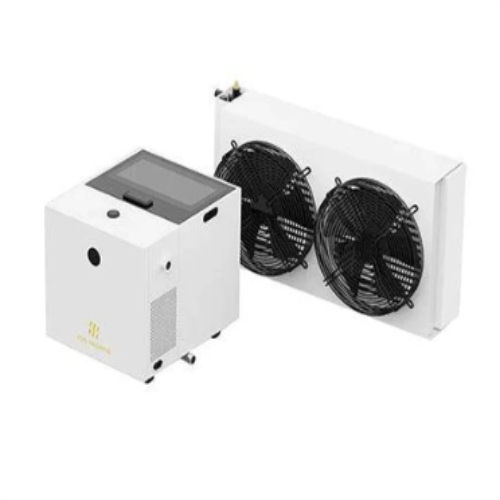

Immersion Cooling Kit C2 12kW

The C2 kit dissipates heat for the miner through a single loop of coolant and can accommodate two ASIC miners, so the price of use is more competitive. Streamlined design and optimized details make it easier to use and more reliable.

Immersion Cooling for Crypto Mining

——Provide from Home Mining to Large-scale Mining Solutions

IMMERSION MINING KIT C2——Designed for Home Mining

Leakage Protection | Universal Wheels | Thermal Flow Optimization | Fluids Unloading Bolt | Higher Load

Compared to C1

Completely redesigned, more than 30 details re-engineered, user experience improved.

Support for Various Models of Miners

Following rigorous testing, Immersion cooling kit now supports miners from Bitmain Antminer, Whatsminer and IceRiver KAS miners.

C2 12kW cooling capacity + Adaptive adjustment

Energy-saving solutions for most usage environments

At 35 °C, C2 can provide full 12kW cooling capacity. Each miner has a cooling margin of 2kW to support sufficient overclocking.
The C2 dry cooler supports automatic frequency adjustment according to the temperature change of the coolant. It can respond to changes in ambient temperature in real-time, ensuring operation with the lowest power consumption.

Product Details

Specifications

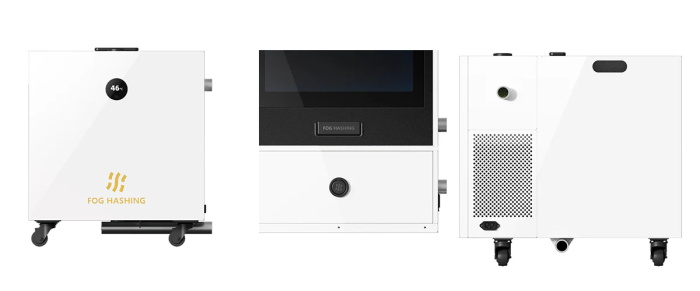

1. C2 Tank

Outer Size	455(L)508(W)536(H)mm 17.91(L)20(W)21.1(H)in
Inner Size	398(L)298(W)392(H)mm 15.67(L)11.73(W)15.43(H)in
Net Weight	40.6kg/89.5Ib
Coolant Volume	80L
Input Voltage	Single-phase 200-240V 50/60Hz
Power	180W(220V 50Hz)
Display	1.32”OLED Screen
Inlet/Outlet Temp	45/60℃

2. C2 Dry Cooler

Size	1076(L)285(W)531(H)mm 42.36(L)111.22(W)20.9(H)in
Power	5-400W(220V 50Hz)
Input Voltage	Single-phase 200-240V 50/60Hz
Net Weight	43.3kg/95.5Ib
Intelligent Speed Tuning	Automatically adjust the speedaccording to the temperature
Cooling Capacity	12kW@35℃12kW@95℉
Noise	68dB(A) 10m
EC Fan	2 pcs

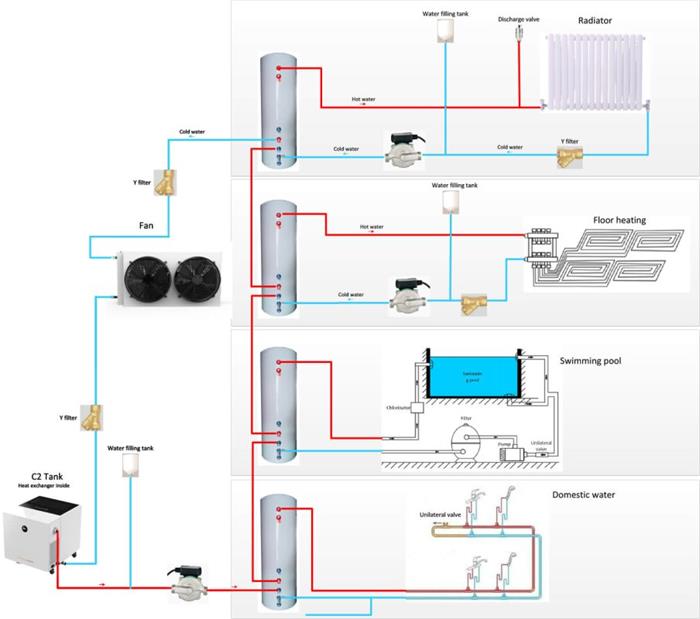

Application——Waste heat recovery scheme

C2 can meet your needs whether it is radiator, floor heating, domestic water, swimming pool. Heating while EARNING! This is a reference schematic and the actual situation should be considered when implementing it.
