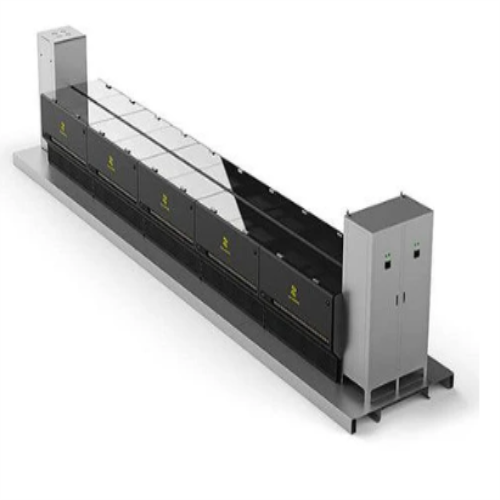

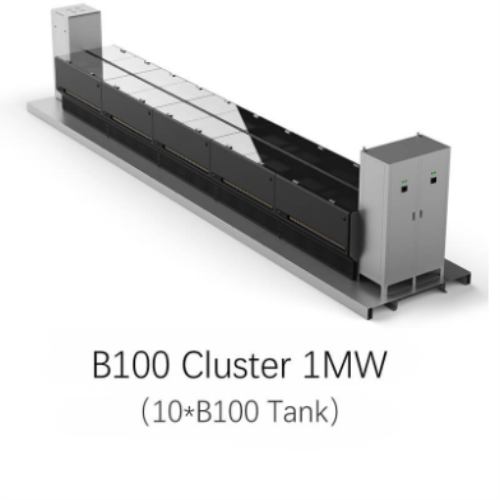

Immersion Cooling B100 Cluster

The Immersion Cooling B100 Cluster delivers 1MW capacity with 10 B100 tanks, each holding 20 units, supporting up to 200 ASIC miners for ultra-efficient cooling.

Immersion Cooling B100 Cluster Plug-and-Play Immersion Mining Module: a cost-effective, space-saving solution for large-scale setups. With modular, pre-installed design and rapid delivery, it’s compatible with 98% of mining rigs. Each unit offers 100kW cooling for up to 20 miners and features a 1MW all-in-one system with an integrated dry cooler.

Immersion Cooling for Crypto Mining

——Provide from Home Mining to Large-scale Mining Solutions

IMMERSION MINING MODULAR B100 Cluster—— For Large Scale Deployment

Modular-Design Cost-Efficient Fast-Delivery

Specifications

Dimensions	11800mm(L) * 2200mm(W) * 2350mm(H)
Miner Capacity	200
Numbers of Tank	10 * B100 Tank (New design)
Cooling Capacity	1MW
Circulation Mode	Single Loop / Dual Loop
Coolant Volume	7000L
Cooling Type	Dry Cooler
Input Voltage	3-phase 350-480V 50/60Hz
Max Power Load	1437kW
Operating Power	100kW
Max Inlet/Outlet Temp	48/56°C
Ambient Temperature	-25°C~48°C
Monitoring	1. Tank level mini-LED, Web based portal for remote control 2. Standard SNMP protocal, email integration
