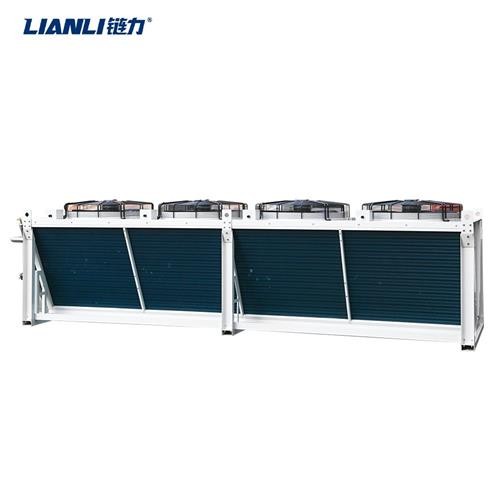

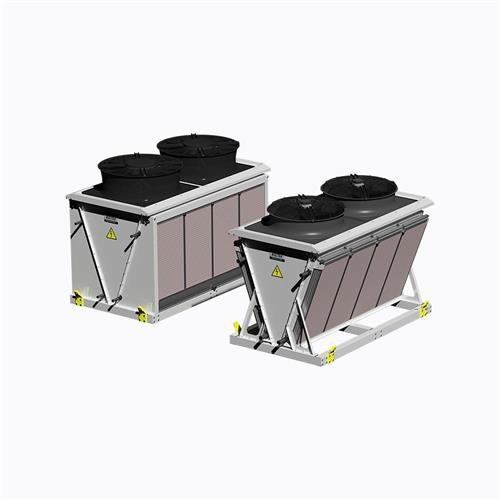

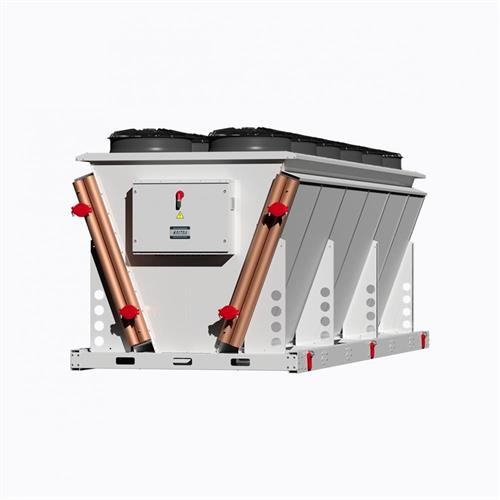

Dry Cooler | 200~2000KW
Model | Dry Cooler120 | Dry Cooler400 | Dry Cooler800 | Dry Cooler1400 |
Heat exchange | 120KW | 400KW | 800KW | 1400KW |
Coolant | Coolant/deionized water/ethylene glycol aqueous solution/propylene glycol aqueous solution | |||
Heat exchanger combination | V-Shape | |||
Heat exchanger style | Copper tube aluminum fin | |||
Main power supply | 380V/50HZ | |||
Power | 3.6KW | 14.4KW | 32.4KW | 80KW |
Fan type | Axial flow EC fan | |||
Fan drive mode | Direct drive | |||
Total air volume | 50000m³/h | 190000m³/h | 380000m³/h | 460000m³/h |
Number of fans | 2 | 8 | 18 | 20 |
Fan speed range | 10%~100% | |||
Startup time | ≤10s | |||
Design pressure | 1.0MPa | |||
Inlet and outlet air temperatur | 38℃/43℃ | |||
Inlet and outlet liquid temperature | 40℃/50℃ | |||
Adjustable outlet liquid temperature range | 30℃~60℃ | |||
Communication interface | RS485 | |||
Operating noise | 60dB | 65dB | 68dB | 70dB |
Product size(mm) | 2800*1550*1670 | 5410*2250*2250 | 10340*2250*2230 | 11950*2250*2400 |
1. Domestic customers: Within 7 days of receiving the goods, our quality department confirms that it is a product quality problem;
2. Overseas customers: Within 15 days of receiving the goods, our quality department confirms that it is a product quality problem;
3. The outer packaging is damaged, and abnormalities occurring during transportation are not within the scope of return or exchange (please contact the freight company for claim settlement, and our company can assist with claim settlement);
4. We only provide after-sales service to customers who purchase directly. If you purchase our products from a dealer or a third party, please contact the seller for after-sales service;
5. The product cannot be disassembled after receipt, and cannot be modified or repaired without our permission. Keep the outer packaging and keep the labels intact, otherwise no after-sales service will be provided.
Contact: Amanda
Phone: 86-755-83240143
E-mail: thebestasicminers@gmail.com
Whatsapp:+8613424370509
Add: 1nd Floor,No.51 Building,Dongwu Industrial Park,Donghuan 1st Road,Pingshan New District, Shenzhen
