Product description

We have been committed to providing high-quality infrastructure for the development of the blockchain and also taking into account how to maximize the benefits of miners. For this reason, we have launched a 12 gpu mining rig case and re-developed a high-power power supply suitable for 12 GPU operation.

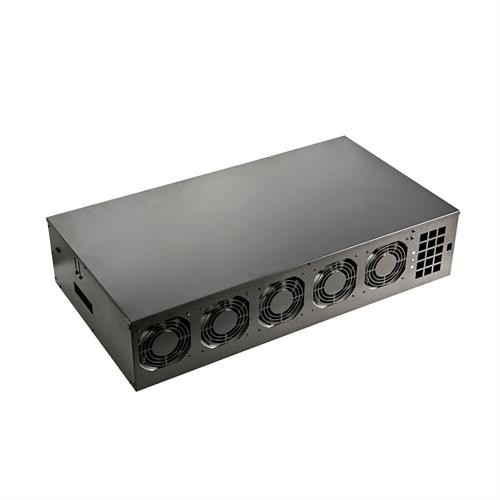

Machine box: frosted black galvanized sheet; thickness 1MM; paint thickness 1.2MM; surface abrasion resistance; double folding process; vertical strength resistance 250KG

Fan: 10 (12038)

Wind volume: 180CFM (ft³/min)

Working life: >50,000 hours

Rotation speed: 4500rpm±10% Bearing type Ball Bearing (double ball)

Cooling method: strong wind cooling; one-way air intake*5FAN/one-way air outlet*5FAN

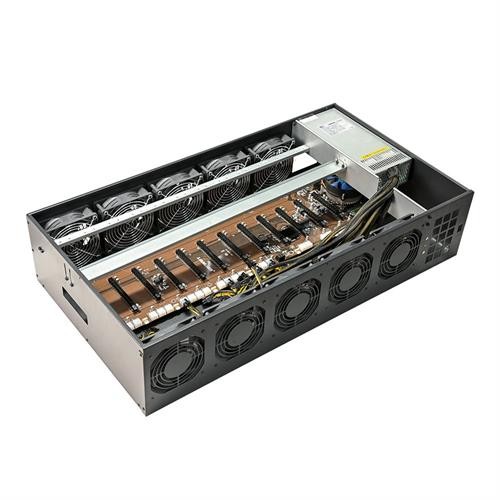

Main board: LL-B250-ETH V4.0 Intel® Core™ /Celeron® LGA1151 VGA&HDMI, Single LAN, SATA, MSATA DDR4 S0-DIMM

Power supply: DC 12POWER; recommended chain force direct power supply

CPU: Intel LGA1151 series processor

CPU cooling: air volume 31.5CFM (ft³/min)

Rotation speed: 1900rpm±10%

Display interface: VGA&HDMI

USB: USB 2.0*2; USB 3.0*2

Network port: Gigabit network card, RTL8111F network card chip

Extended USB2.0: support FUSB to USB 2.0*2

PCIE : PCIE x16(2.0)*12; slot spacing 5.5cm

M-SATA/SATA: SATA3.0*2;M-SATA

POWER 6PIN*24 PWR

Memory: Maximum capacity 8GB memory slot 260-Pin DDR4 4GB (support 8GB) SO-DIMM slot

Hard disk: MSATA

Fan speed controller: adjust the speed according to the PWM duty cycle 500-4500RPM

Fan extension cable: 110MM±2MM*2

On Off: Reset > 10000 times

Operating temperature: 0℃-60℃ 10%-90%@40℃ (Non self-solidifying)

Storage temperature: -40℃-70℃ 5%-90%@40℃ (Non self-solidifying)

Net weight: 13.7KG±0.5KG

Gross weight: 16KG±0.5KG

Chassis size: 805MM*440MM*175MM±2MM

Packing size: 875MM*520MM*260MM±10MM

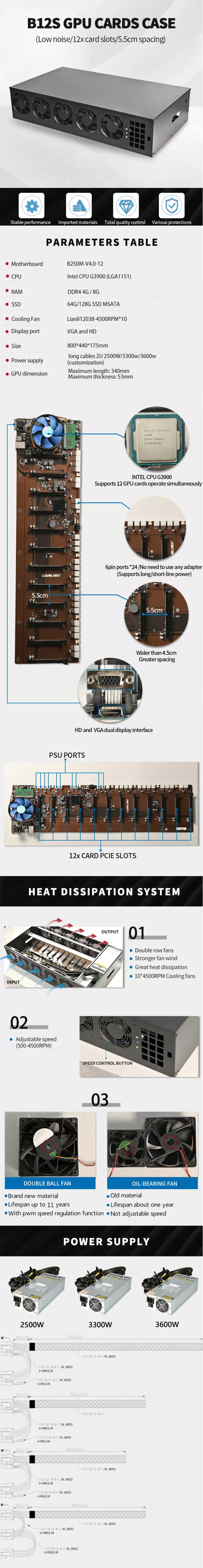

Product parameter table
