The Hydro Cooling 12pcs 3U Cabinet is a high-efficiency water cooling solution designed for Antminer U3S21EXPH miners
Description The Hydro Cooling 12pcs 3U Cabinet is a high-efficiency water cooling solution designed for Antminer U3S21EXPH miners. This scalable cooling system supports up to 12 units, making it ideal for mid-to-large-scale mining operations. Equipped with a hydro cooling cabinet, dry cooling tower, and pump station, the 3U Cabinet efficiently manages heat using circulating deionized water, ensuring stable and optimal miner performance. Its advanced cooling technology helps prevent overheating, improving both energy efficiency and hardware longevity. Designed for industrial-scale and high-density mining, this solution optimizes space, cooling capacity, and operational reliability. By integrating the 3U Cabinet, miners can achieve enhanced efficiency, lower energy costs, and prolonged miner lifespan, making it a smart investment for long-term cryptocurrency mining success.

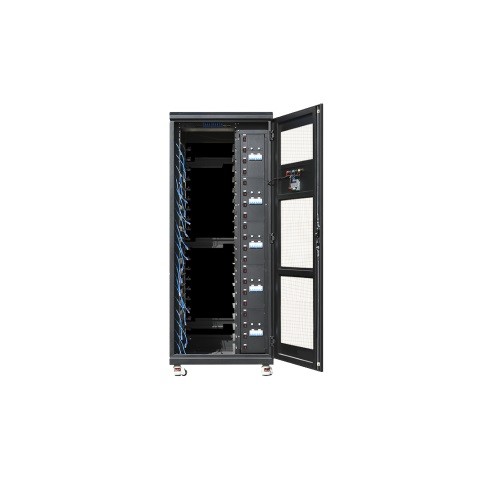

Hydro Cooling Cabinet
A closed-loop water cooling system that maintains optimal mining temperatures with minimal water consumption.
Dry-Cooler
An evaporative cooling solution designed for efficient, large-scale heat dissipation in mining operations.
Cooling Distribution Unit (CDU)
A versatile control unit offering both cooling and heating modes for yearround temperature regulation.
Hydro Cooling System
A complete cooling solution integrating cabinet, dry-cooler and CDU technologies for maximum mining efficiency.
1. 12pcs 3U Hydro Cabinet & Dry-Cooler
| Model | 12pcs 3U Hydro Cabinet |
| Heat Dissipation Capacity | 200kW |
| Miners Capacity | 12 * Antminer U3S21EXPH |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) (CABINET) |
| 100cm(L) * 85cm(W) * 210cm(H) (DRY COOLER) | |
| Weight | 240KG (CABINET) 320KG (DRY COOLER) |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 50 / 60 °C |
| External Cooling | Dry Cooler |
| Fluid Flow Rate | 20 m³/h |
| Max Power Load | 200kW |
| Input Voltage | 3 Phase 380-480V 50/60Hz |
| Output Voltage | 3 Phase 380-480V 50/60Hz |
| Monitoring and Management | 1. Smart PDU 2. PLC Control System |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Certification | CE |
| Extras | High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector |
2. 12pcs 3U Hydro CDU
| Model | 12pcs 3U Hydro CDU |
| Power (Main pump power) | 4.75KW |
| Rotational speed | 2900 r/min |
| Power (Auxiliary pump power) | 0.55KW |
| Fluid Flow Rate | 20 m³/h |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) (CDU) |
| Weight | 350KG (CDU) |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Monitoring and Management | 1. Smart PDU 2. PLC Control System |
