Support 6 ASICs inside (Multiple models of Antminer, Whatsminer and Avalon) | Smart Adjustment
——Provide from Home Mining to Large-scale Mining Solutions
Support 6 ASICs inside (Multiple models of Antminer, Whatsminer and Avalon) | Smart Adjustment
Streamlined design that eliminates the need for secondary heat exchange methods, relying solely on oil
circulation.

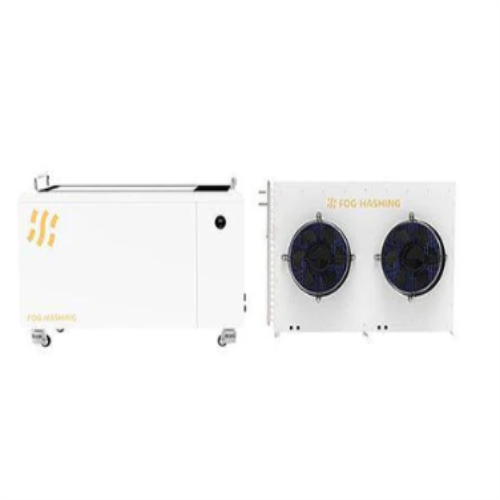

A convenient all-in-one configuration, combining a single tank with a dry cooler, requiring only the installation of tubing and wiring.

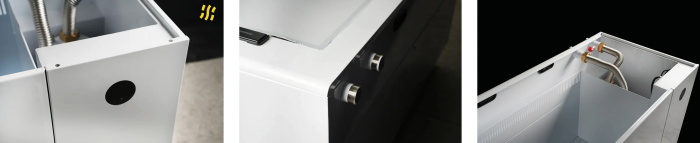

1. C6 Tank
| Outsize | 1185(L)*530(W)*760(H)mm |
| Insize | 912(L)*404(W)*355(H)mm |
| G.W. | 110kg |
| Coolant Volume | 200L |
| Cycle Mode | Single Loop |
| Input Voltage | Single-Phase 200-240V 50/60Hz |
| Power Usage (Max) | 800-1100W |
| Noise | 45dB(A)@10m |
| Flow | 90L/min |
| Qty of Miner(s) | 6*S19/S21 8*M50/M60 |
| PDU | Single-phase: 220V 125A 6C19 Three-phase: 380V 63A 6C19 |

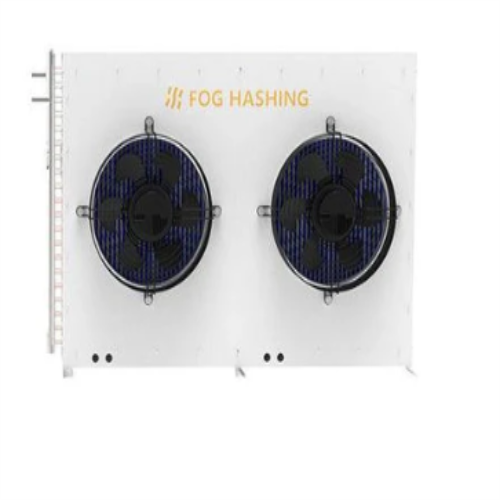

2. C6 Dry Cooler
| Outer Size | 1680(L)*400(W)*1015(H)mm |
| Input Voltage | Single-Phase 200-240V 50/60Hz |
| Power Usage (Max) | 10-1400W(220V 50Hz) |
| G.W. | 110kg |
| Cooling Capacity | 24kW@35℃ |
| Fluid In / Out | 63-53°C |
| Electrical Interface | C14 *1 |
| Fan Type | EC Fan |
| Noise | 65dB(A)@10m (MAX) |
