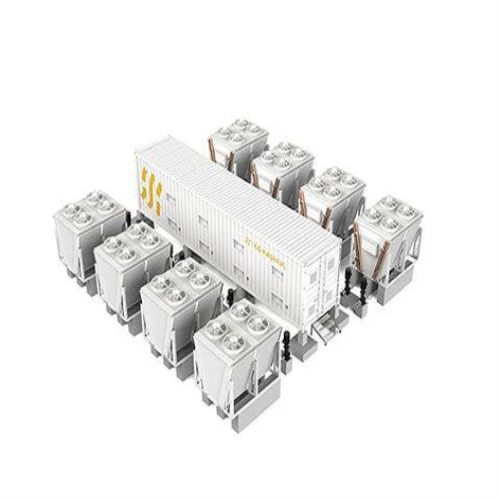

Immersion Cooling System MC40 Container

Immersion Cooling System MC SERIES CONTAINER MC40

M20 Tank x16
Can accommodate 320x M66/M56 miners inside.
Includes LED Lighting System, Ventilation System, Air Filter, Remote Temperature Sensors, Remote Smoke Sensors, CCTV.
Supports remote monitoring of the liquid cooling system (liquid level, temperature, voltage, etc.).

MC SERIES CONTAINER MC10 is designed for Whatsminers. It can support 320 M56/M66.

Description

Immersion Cooling System MC SERIES CONTAINER MC40

M20 Tank x16
Can accommodate 320x M66/M56 miners inside.
Includes LED Lighting System, Ventilation System, Air Filter, Remote Temperature Sensors, Remote Smoke Sensors, CCTV.
Supports remote monitoring of the liquid cooling system (liquid level, temperature, voltage, etc.).

Product Details

Specifications

Outer size	1219224382896
Operating Weight (T)	23
Coolant Volume (L)	13000
Cooling Mode	Single loop
Miner Capacity	320 M66/M56
Tank Quantity	M20 Tank * 16
Ambient Temperature	-25°C~ 55°C
Input Voltage	3-phase 350-480V 50/60Hz
Max Power Load (kW)	2632
Output Voltage	3-phase 350-480V 50/60Hz
Safety Certification	CE/UL
Operating Power(kW)	124
Power Distribution Cabinets(A)	2000A*2
Smart PDU	16
Smart Meter	√
Cooling Capacity(kW)	2240
Cooling Type	Dry cooler / Closed water cooling tower
Max Inlet Temperature (℃)	47
Max Outlet Temperature (℃)	60
Design Reference Temperature (℃)	30
Container Certification	China Classification Society Certification
Container Components	Including LED Lighting System, Ventilation System, Air Filter, Remote Temperature Sensors, Remote Smoke Sensors, CCTV
Remote Management	Support remote liquid cooling system monitoring (liquid level, temperature, voltage, etc.)
Service Lifecycle	10 years
