Immersion Mining B100 Tank

mmersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions

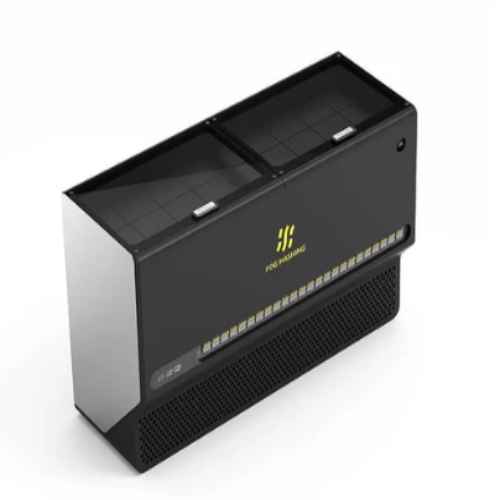

IMMERSION MINING MODULAR B100 Tank—— For Large Scale Deployment

Features

Modular & Pre-Installed Design: Engineered for large-scale distribution and rapid deployment, ensuring a quick setup and efficient installation process.
Broad Compatibility: Supports over 98% of mining rig models, providing versatility and ease of integration with your existing equipment.
Powerful Cooling Capacity: Each unit delivers 100kW of cooling power, accommodating up to 20 miners per tank, optimizing temperature control for enhanced performance.
Scalable Solutions: Available in a 1MW all-in-one configuration, featuring an integrated dry cooler for streamlined operation and increased efficiency.
Rapid Delivery: Designed for swift deployment to meet your scaling needs without delay.

Optimize your mining infrastructure with the IMMERSION MINING MODULAR B100 Tank, where advanced cooling technology meets flexible deployment.

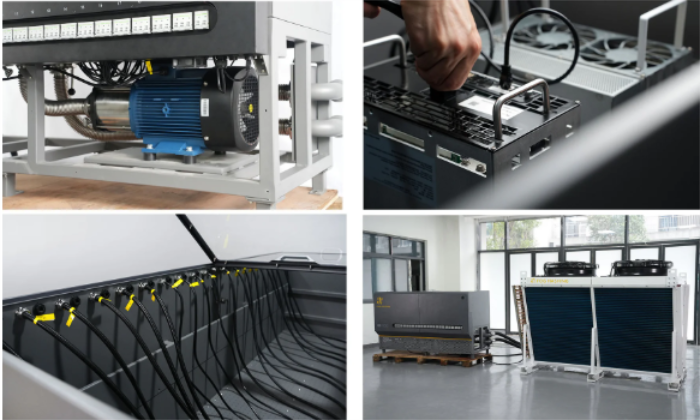

mmersion Cooling for Crypto Mining.png

Specifications

Numbers of B100 Tank	1
Heat dissipation capacity	100kW
Miners capacity	20S21 18T21/M66S 16*S21 Imm/S21 XP Imm/S21 Pro
Circulation Mode	Single Mode / Dual Mode
Dimensions	2010mm(L)746.2mm(W)1190mm(H)
Footprint	2 m2
Coolant Volume	700L
Max Inlet/Outlet Temp	48/56 °C
External Cooling	Dry Cooler
Fluid Flow Rate	500L/min
Max Power Load	150kW
Input Voltage	3 Phase 350-480V 50/60Hz
Output Voltage	Single-phase 200-277V 50/60Hz 3 Phase 350-480V 50/60Hz
Monitoring and Management	1. Tank level mini-LED 2. Standard SNMP protocal, email integration
Ambient Temp	-25°C~ 48°C
