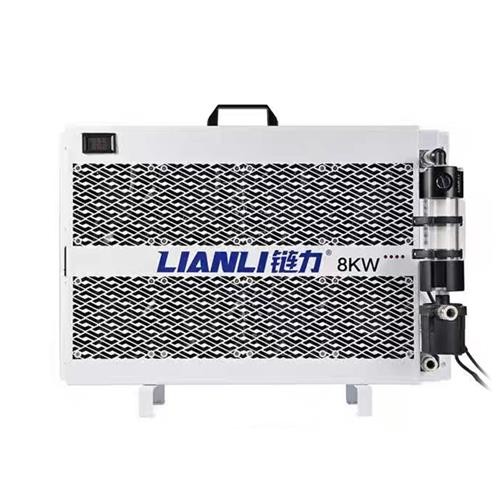

Lianli Hydro Cooling Radiator (8 KW)

Liquid water cooling chiller for Hydro Asic Miners

Lianli 8KW integrated water drain is often used to dissipate heat for overclocking water-cooled miners. It operates silently, effectively reduces chip temperature, operates stably, and dissipates heat quickly. Applicable miner brands include Antminer, Whatsminer, Iceriver, Avalon, Innosilicon, etc.

Note: The 8KW radiator is only used for one air-cooled miner converted to a water-cooled miner.

Product features:

Strong power pump; high head, large flow, high-temperature pump.

The speed can be adjusted from 500 to 4500; the lowest speed can be adjusted in winter, silent operation, and it can be turned on at full speed in summer, and the chip runs at low temperatures.

Customized high-density finned water-cooled plate; 36 heat dissipation channels, more powerful heat dissipation, built-in 220V power supply, one-button boot, no need for external power supply, avoiding repeated plugging and unplugging.

Product parameters:

Oil filling capacity: ≈ 5L pure water or coolant

Type of power interface: C14 female seat 1; need to match C13 power cord/220V

Water-cooled row power consumption: 0.16KW

Net weight: 12KG

Pipe diameter: water inlet and outlet diameter 12MM (need to match PU pipe with an outer diameter of 12MM)

Product size: 600x85x410mm

Test environment temperature: 27℃

Working power consumption: 7.8KW

Working noise: 20-70DB

Cooling radiator temperature: 43.6°C

Speed range: 500-4500 rpm

Other parameters water cooling row:
