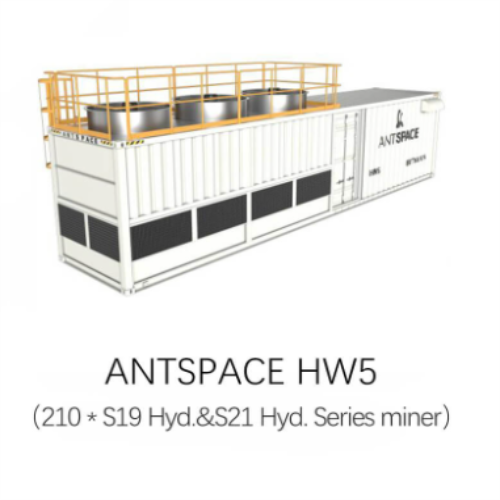

The BITMAIN ANTSPACE HW5 is a 1.2MW hydro cooling solution built to support 210 Antminer S19, S21, or S23 Hydro miners for efficient large-scale mining.
The ANTSPACE HW5 is a cutting-edge mining solution with a power capacity of 1.2MW. This Dry-Wet Tower design can support up to 210 miners, making it ideal for high-demand mining operations. Its all-in-one design saves time, space, and money, offering significant advantages for large-scale deployments. Housed in a 40-foot container, the ANTSPACE HW5 combines efficiency and convenience, setting a new standard in the mining industry.
Specifications
| Product Overview | Value |
| Model | ANTSPACE HW5 |
| Version | V1 |
| Dimensions (l*w*h) (mm) | 12192×2438×2896 |
| Miner capacity | 210 units -S19 Hyd. &S21 Hyd. Series miner |
| Container certification | China Classification Society Certification |
| Safety certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009 |
| Operating power(kW) | 1062 |
| PUE(Power usage effectiveness) | 1.032 |
| Input voltage and frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | |
| Shipping weight(T) | 14 |
| Operating weight (T) | 24 |
| Main switch of power distribution cabinets(A) | 1200*2 |
| Rated current(A) | ≤986 |
| Rated Current per Miner (A) | ≤10 |
| Inlet cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N Single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2 |
| Flow rate(m³/h) | ≥85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |
| Dry-Wet Tower | |
| Heat Dissipation Capacity (kW) | 1200 kW |
| Outlet Temperature @ 28℃ Wet Bulb Temperature | 35℃ |
| Container Certification | China Classification Society Certification |
| Operating Power (kW) | 15~29 |
| Motor Rated Voltage and Frequency | 400V±5% 50/60Hz |
| Motor Rated Voltage and Frequency | DN40(Internal thread) |
| Drain Pipe Interface | DN65(Internal thread) |
| Noise Level @25℃, 15m | 70 dBA |
| Water Consumption (m³/h) | 0.7~1.3m³/h |
