800kW Hydro Cooling System supports 144 Antminer S19/S21/S23 Hydro miners. Compact indoor setup with scalable 12-36 machine racks. Complete mining infrastructure with hydro cooling.

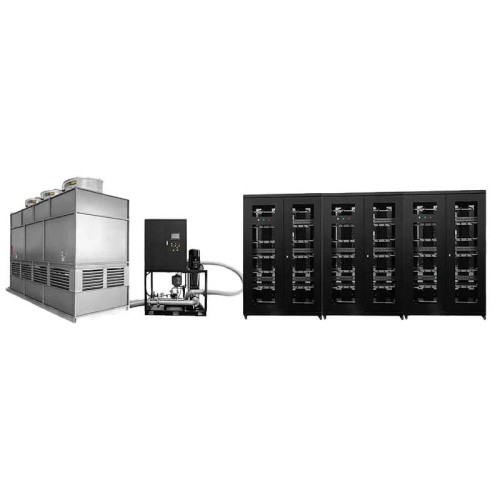

This 800kW Hydro Cooling System provides a complete, compact indoor mining infrastructure supporting up to 144 Antminer S19/S21/S23 Hydro miners across four 36-machine racks. Designed for smaller-scale operations with 800kW+ available power, this integrated system features a one-to-four cabinet design with comprehensive power management, efficient hydro cooling, and multiple customization options for flexible deployment in warehouse environments.
| Model | 12position | 20position | 24position | 28position | 36position |
| Dimensions (mm) | 900*1000*2200 | 1000*1000*1800 | 1000*1000*2000 | 1000*1000*2200 | 1550*1000*2000 |
| Miner Capacity | 12 | 20 | 24 | 28 | 36 |
| Certification | UL CSA CE | ||||
| Input Voltage and Power Frequency (HZ) | 380/220V 50 | ||||
| Est. Shipping Weight (KG) | 350 | 190 | 220 | 258 | 322 |
| Main Switch of Distribution Cabinet (A) | 160 | 250 | 400 | 400 | 630 |
| Rated Current (A) | 144 | 240 | 288 | 336 | 432 |
| Normal Power (KW) | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Maximum Power (KW) | 5.73 | 5.73 | 5.73 | 5.73 | 5.73 |
| Current Rating Per Miner (A) | 12 | 12 | 12 | 12 | 12 |
| Flow of Current (Cubic Per Hour) | 6 | 10 | 12 | 14 | 18 |
| Cooling Tower Dimensions (mm) | 1800*1050*2900 | 2000*1050*2900 | 2500*1050*2900 | 2600*1050*2900 | 3000*1250*3000 |
| Noise from equipment (dB) | 70 | 70 | 70 | 70 | 70 |
| Heat Dissipation Method | Closed cooling tower/Dry cooling tower/Plate heat exchanger/Immersion coil cooling | ||||
Input Power: 380V/220V, 50Hz
Current per Miner: 12A dedicated circuits
Cooling Flow Rate: 6-18 m³/h (scales with rack size)
Heat Dissipation: 4.9kW normal / 5.73kW max per unit
Noise Level: 70dB from cooling equipment
Cooling Options: Closed cooling tower, Dry cooler, Plate heat exchanger, or Immersion coil
Hydro Cooling Cabinets (1-4 units based on configuration)
Cooling Distribution Unit (CDU) with precise temperature control
Power Distribution Cabinet with 1-on-1 PDU switching
Control Cabinet for system monitoring and management
Cooling Tower (size scales with rack capacity)
Compact Indoor Design: Optimized for warehouse spaces with limited footprint
Clear Power Management: Individual PDU switching for each miner simplifies maintenance
Energy Efficient Cooling: Hydro technology maintains optimal temperatures for maximum miner performance
Scalable Architecture: Start small and expand with consistent rack designs
Customizable Appearance: Cabinet exteriors can mimic electric boilers or distribution cabinets for discretion
Cabinet Styles: Electric-boiler style or distribution-cabinet appearance
Rack Sizes: 12, 20, 24, 28, or 36-machine configurations
Cooling Methods: Multiple heat dissipation options for different environments
Deployment Flexibility: Mix and match rack sizes within the same system
Complete Package: Everything needed for professional mining in one integrated system
Space Efficient: Maximizes miner density in limited indoor spaces
Management Simplicity: Clear power distribution and monitoring simplify operations
Future-Proof Design: Scalable architecture supports business growth and technology upgrades
Target Audience: Small to medium mining operations, warehouse mining facilities, and entrepreneurs entering industrial-scale cryptocurrency mining with power constraints.
