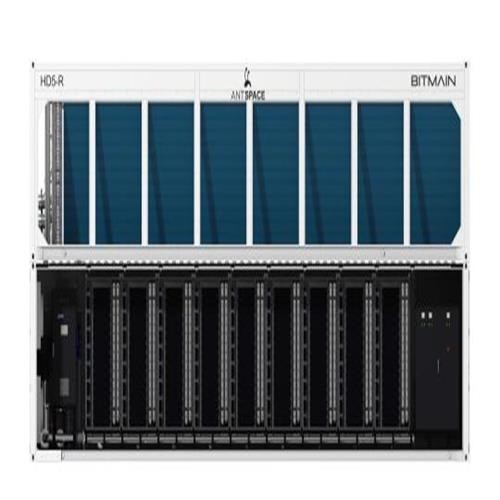

ANTSPACE HD5 CE Version

Specifications 1Set 135 Rack Space CE Version

Specification Details For ANTSPACE HD5

Detailed Characteristics	Value
Shipping weight, T	12
Operating weight, T	18.2
Main switch of power distribution cabinets, A	1200×3
Rated current, A	900
Normal power, kW	1620
Rated current per Miner, A	24
Inlet cable	The inlet copper cable has a voltage resistance of 600V or more, and each phase is required to below: L1 single core cable 400kcMil （185mm²）x6 L2 single core cable 400kcMil（185mm²）x6 L3 single core cable 400kcMil （185mm²）x6 N single-core cable 400kcMil （185mm²）x3 PE single-core cable 400kcMil（185mm²）x3
Connection interface (Dry Cooling tower)	DN125（ISO2852 PN16）
Connection interface (Plate heat exchange interface)	DN125（GB/T 9122-2010 PN16）
Flow rate, m³/h	≥130
Quantity of ANTSPACE powered by one 3750kVA Transformer	2

Detailed Characteristics	Value
Shipping Weight, T	12
Operating Weight, T	13.5
Heat Dissipation Capacity	1620kW
Outlet water temperature @30˚C ambient temperature	35℃±1˚C
Container Certification	CCS
Safety Certification	NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 IEC 60204 Ed 5.1 2009
Input Voltage and Frequency	AC400V±5% 50/60Hz
Operationg Power, kW	≤70
Connection interface (Container)	DN125（ISO2852 PN16）
Connection Interface (Drain Pipe)	DN25（Tapered tube）
Noise @25℃, 15m	75dBA
Coolant Usage, m³	2.5
