Specifications 1Set 1500KW 308 Rack Space
Payment Method
USDBTCETCUSDT(ERC20/TRC20)
| Product Overview | Value |

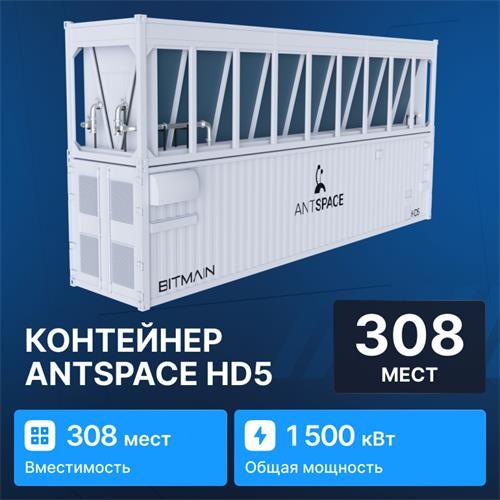

| Model | ANTSPACE HD5 |
| Dimensions (l*w*h), mm | 12192*2438*2896 |
| Miner capacity | 308 units -S19 Hyd. & S21 Hyd. Series miner |
| Container certification | CCS |
| Safety certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 11 |
| Operating weight, T | 17.2 |
| Main switch of power distribution cabinets, A | 1200×4 |
| Rated current, A | 700×4 |
| Normal power, kW | 1512 |
| Maximum power, kW | 1765 |
| Rated current per Miner, A | 10 |
| Inlet cable | The inlet copper cable has a voltage resistance of 600V or more, and each phase is required to below: L1 single core cable 400kcMil （185mm²）x8 L2 single core cable 400kcMil（185mm²）x8 L3 single core cable 400kcMil （185mm²）x8 N Single-core cable 400kcMil （185mm²）x4 PE single-core cable 400kcMil（185mm²）x4 |
| Connection interface (Dry Cooling tower) | DN100（ISO2852 PN16） |
| Connection interface (Plate heat exchange interface) | DN100（GB/T 9122-2010 PN16） |
| Flow rate 1(1-1), m³/h | 67.2 |
| Flow rate 2(1-2), m³/h | 73.9 |
| Quantity of ANTSPACE powered by one 3750kVA Transformer | 2 |
Notes:
(1-1) Corresponding to 140 miners on one side, the main pump frequency of about 41 Hz.
(1-2) Corresponding to 154 miners on one side, the main pump frequency of about 45 Hz.
| Product Overview | Value |
| Model | EC2-DT Dry Cooler（Container Type） |
| Dimensions (L*W*H)（mm） | 12192*2438*2896 |
| Detailed Characteristics | Value |
| Shipping Weight, T | 12 |
| Operating Weight, T | 13.5 |
| Heat Dissipation Capacity | 1500kW |
| Outlet water temperature @30˚C ambient temperature | 35℃±1˚C |
| Container Certification | CCS |
| Safety Certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 IEC 60204 Ed 5.1 2009 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Operationg Power, kW | ≤80 |
| Connection interface (Container) | DN100（ISO2852 PN16） |
| Connection Interface (Drain Pipe) | DN20（Tapered tube） |
| Noise @25℃, 15m | 75dBA |
| Coolant Usage, m³ | 2.1 |
