The BC10 MEGA is a high-density immersion cooling design with the goal of providing a full-stack solution for large-scale mining customers. Support up to 96 units of AntMiner S19 and 120 units of WhatsMiner M50 inside.
The BC10 MEGA is a high-density immersion cooling design with the goal of providing a full-stack solution for large-scale mining customers. Support up to 96 units of AntMiner S19 and 120 units of WhatsMiner M50 inside.
Immersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions

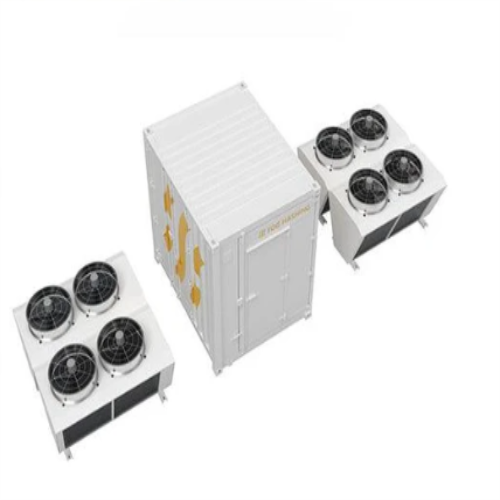

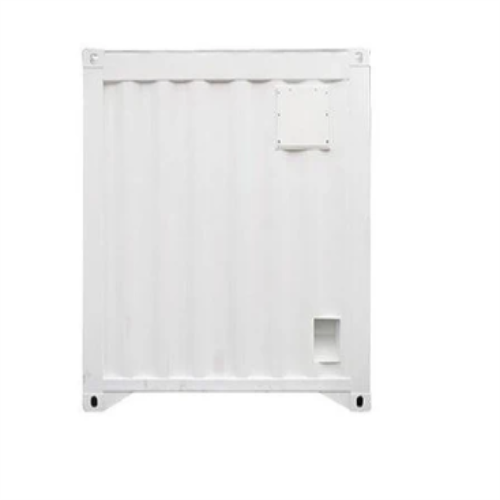

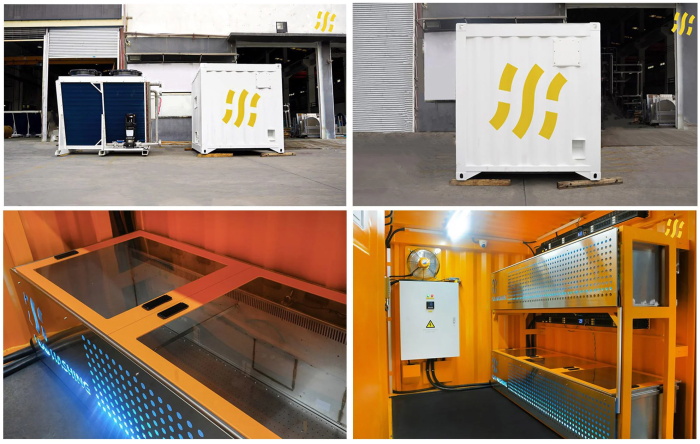

IMMERSION COOLING CONTAINER BC10——Designed for large-scale mining
• Precise temperature control – Provides a controlled environment for chipsets and eliminates “electron migration phenomena” caused by high heat.
• Stable operation – Reduces failures, increases uptime-rate close to 100%.
• Longer lifecycle – The mining machines are isolated from the air and free from dust, static electricity, short circuit, oxidation, and fan vibration, extending the lifecycle of the mining machine to more than 5 years in average.
• Low noise – Eliminates the noise problem of air cooling and allows to deploy in residential and commercial areas.
• Overclocked hashrate – Up to 60% of hashrate overclocking will shorten the return cycle and boost the ROI.
• Reduced O&M cost – Stable operating capability combined with FH remote monitoring system can reduce maintenance costs by up to 90%.
• Lower cooling cost – FH intelligent power management system can reduce cooling energy consumption (PUE 1.02~1.05) and carbon emission more effectively.
| – | BASIC | PRO |
| Dimensions(L*W*H)(mm) | 2991*2438*2591 | 2991*2438*2591 |
| Shipping Weight(T) | 3 | 3 |
| Operating Weight(T) | 6 | 6 |
| Coolant Capacity (L) | 3600 | 3600 |
| Cycle Mode | Single loop | Single loop |
| Miner Capacity | 96 S19/120 M50 | 96 S19/120 M50 |
| Tank Quantity | B24 Tank*4 | B24 Tank*4 |
| Operating Temperature(℃) | -25°C ~55℃ | -25°C ~55℃ |
| – | BASIC | PRO |
| Input Voltage and Frequency | 3-phase 350-480V 50/60Hz | 3-phase 350-480V 50/60Hz |
| Max Power Load (kW) | 444 | 706 |
| Output Voltage and Frequency | Single-phase 200-277V 50/60Hz | Single-phase 200-277V 50/60Hz |
| Safety Certification | CE/UL | CE/UL |
| Operating Power(kW) | 25 | 33 |
| Power Distribution Cabinets(A) | 630Ax1 *1 | 1000Ax1 *1 |
| PDU | Smart PDU * 4 | Smart PDU * 8 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 1AWG(42.4mm x4) x1 *1L2 4-wires cable 1AWG(42.4mm x4) x1 *1L3 4-wires cable 1AWG(42.4mm x4) x1 *1N 4-wires cable 1AWG(42.4mm x4) x1 *1PE 1-wire cable 1AWG(42.4mm) x1 *1 | The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x1 *1L2 4-wires cable 3/0AWG(85mm x4) x1 *1L3 4-wires cable 3/0AWG(85mm x4) x1 *1N 4-wires cable 3/0AWG(85mm x4) x1 *1PE 1-wire cable 3/0AWG(85mm) x1 *1 |
| Smart Meter | – | ✓ |
| Integrated Wiring | ✓ | ✓ |
| Network | ✓ | ✓ |
| UPS | – | – |
| SPD | ✓ | ✓ |
| – | BASIC | PRO |
| Cooling Capacity(kW) | 360 | 480 |
| Cooling Type | Closed water cooling tower or Dry cooler | Closed water cooling tower or Dry cooler |
| Inlet Temperature(℃) | 45 | 45 |
| Outlet Temperature(℃) | 60 | 60 |
| Design Reference Temperature (℃) | 35 | 35 |
