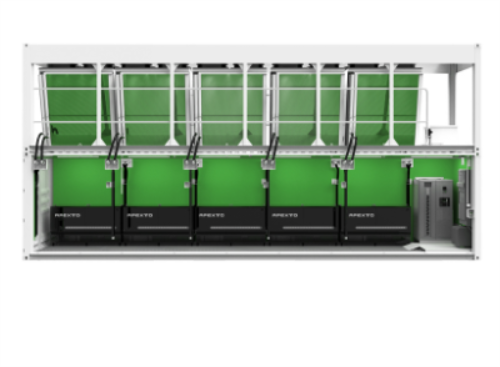

Immersion cooling container BC40 Elite

Immersion cooling container BC40 Elite is built for large-scale cryptocurrency mining, offering 1MW cooling capacity and supporting up to 200 air-cooled or immersion miners.

IMMERSION MINING BC40 Elite Plug & Play Solution

Features

Miner Capability

Compatible with over 98% of mining rig models on

the market.

Containing 200 miners inside with 1MW cooling capacity.

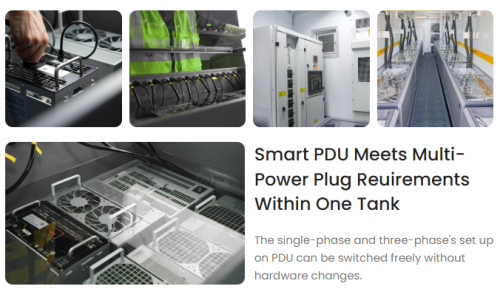

PDU design meet multi-power plug requirements.

Modularity & Flexibility

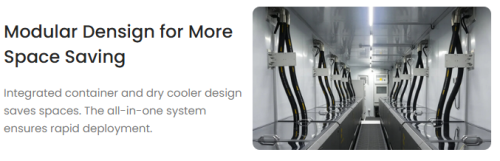

Dry cooler is integrated on the top of the container to save space.

Modular design to reduce installation time, all-in-one design enable fast-deploy. Integrated design of

container and dry cooler for swift mobility.

Containing 200 miners inside with 1MW cooling capacity..png

Containing 200 miners inside with 1MW cooling capacity. (2).png

Specifications

Dimensions	12192mm(H) * 2438mm(W) * 2896mm(H)
Miner Capacity	200S21 180T21/M66S 160*S21 Imm/S21 XP
Numbers of Tank	10 * B100 Tank (New design)
Circulation Mode	Single Loop / Dual Loop
Coolant Volume	TANK：530L10 Dry Cooler：170L10 Container：7000L
Ambient Temperature	-25°C~48°C
Input Voltage	Three-phase 350-480V 50/60Hz
Max Power Load	1,437kW
Output Voltage	Single-phase 200-277V 50/60Hz Three-phase 350-480V 50/60Hz
Safety Certification	CE/UL
Non-mining Power Load	58-93kW
Power Distribution Cabinets	2,000A*1
PDU	10*Smart PDU
Smart Meter	Included
Cooling Capacity	1MW
Cooling Type	Dry Cooler
Inlet/Outlet Temperature	48°C/56°C
Design Reference Temperature	35°C
Service Lifecycle	10 years
