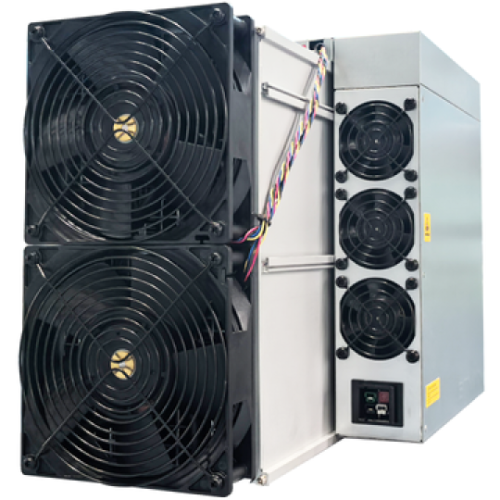

Function LTC+DOGE+BELLS+JKC+LKY+PEP Scrypt Air-cooling Miner
Specifications 20G 3680W 184J/G
Specifications
| Product Glance | Value |
| Model | L11 |
| Algorithm | Cryptocurrency | Scrypt | LTC+DOGE+BEL+JKC+LKY+PEP |
| Typical Hashrate, GH/s(1-1) | 20 |
| Power on wall @25°C, Watt(1-1). | 3680 |
| Power efficiency on wall@25°C(1-2), J/GH(1-1) | 184 |
| Detailed Characteristics | Value |
| Power supply | |
| Phase | 1 |
| Input voltage, Volt(2-1) | 220~277 |
| Input Frequency Range, Hz | 50/60 |
| Input max current(2-2), Amp | 20 |
| Power Port | P14 |
| Hardware Configuration | |
| Network connection mode | RJ45 Ethernet 10/100M |
| Server size (Length*Width*Height, w/o package), mm | 468*219*293 |
| Server size (Length*Width*Height, with package), mm | 630*350*430 |
| Net weight, kg | 19.2 |
| Gross weight, kg | 22.2 |
| Noise(2-3) @25℃, dBA | 76 |
| Max airflow(2-4), CFM | 480 |
| Environment Requirements | |
| Operating temperature, °C | -20~45 |
| Storage temperature, °C | -40~70 |
| Operation humidity(non-condensing), RH | 10~90% |
| Operating altitude(2-5), m | ≤2000 |
Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet air temperature.
(2-1) Caution: Wrong input voltage may probably cause server damaged.
(2-2) Single-phase AC input 20A.
(2-3) Max condition: Fan is under max RPM(rotation per minute).
(2-4) When the server is dusty or the environment is poorly ventilated, the server airflow will reduce.
(2-5) When the server is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m.
