ANTBOX N5 V2

Bitmain Antbox N5 Mobile Mining Container 20HQ 658KW
Power Distribution & Power Demand
✔ The current capacity of main switch of power ✔ distribution cabinet : 1600A/2000A
✔ Rated current : 1250A
✔ Input Voltage : 380-415V AC 50/60HZ
✔ Operating Power : 672KW~745 KW
✔ Power consumption of mining machine : 3200~3600 W (Estimation)
✔ Inlet cable : Single Core 600kcMil (300mm2) *4*5, Above 600V
✔ 2500KVA Transformer : Supports 3 sets of ANTBOX N5 V2 to operate simultaneously)

ANTBOX N5 V2 is a new generation of mobile mining farm developed by Bitmain, which can greatly shorten the construction cycle of supercomputing centers. The ANTBOX N5 V2 is designed to support personalized free stacking and customization with high-powered mining machines such as the 19 series, providing up to 207 machine spaces.

With environmental protection and energy-saving features and advanced cooling technology, ANTBOX N5 V2 meets all safety standards (UL and CSA), and comes with its own container power distribution cabinet, so it is the best choice for mining at sea.

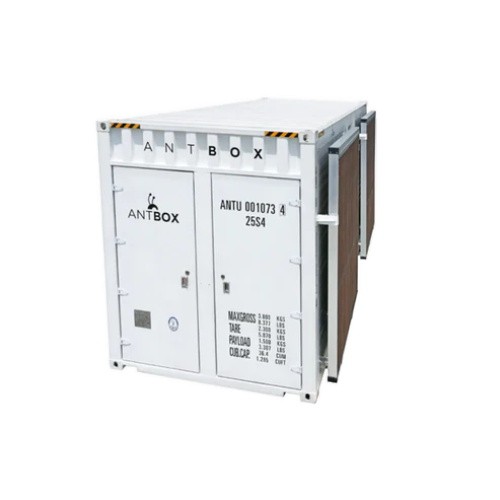

Figure 1: Image of the ANTBOX N5 V2 container unit.

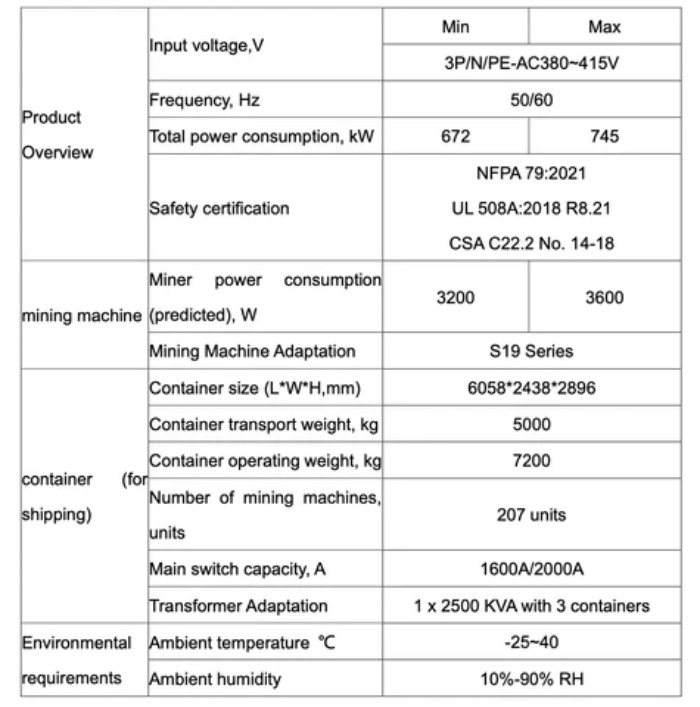

Antbox N5V2 04.jpg
