240kW Immersion System B24 Tank*2

Miner Capacity: Supports up to 48 Antminers or 60 Whatsminers.
Cooling Power: Provides a robust 240kW cooling capacity for optimal overclocked performance.
Circulation System: Features advanced dual-loop circulation with separate CDUs for efficient cooling.
Infrastructure: Equipped with smart PDUs and integrated networking for seamless operation.

We provide scalable quantities of B24 Tanks to accommodate projects ranging from 100kW to 100MW. Our solutions are turnkey and expandable to fit your specific needs.

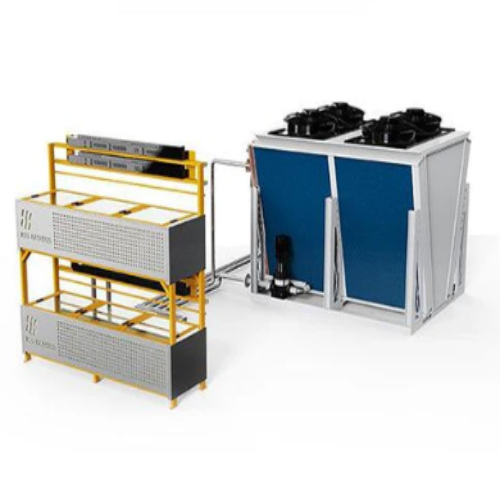

B24 240kW Immersion Cooling System

Product Highlights:

Miner Capacity: Supports up to 48 Antminers or 60 Whatsminers.
Cooling Power: Provides a robust 240kW cooling capacity for optimal overclocked performance.
Circulation System: Features advanced dual-loop circulation with separate CDUs for efficient cooling.
Infrastructure: Equipped with smart PDUs and integrated networking for seamless operation.
Components: Includes circulation pumps and comprehensive piping.
Cooling Options: Default dry cooler with an option for a closed water cooling tower.
Design Benefits: High-density, space-saving structure designed for easy setup and remote management capabilities.

240kW Immersion System Specifications

Qty of B24 Tanks	2
B24 Outer Size	2486746530mm
Input Voltage	3-phase 350-480V 50/60Hz
Output Voltage	Single-phase 200-277V 50/60Hz
Cooling Capacity	240kW@35°C
Ambient Temp	-25°C ~ 55°C
Net Weight (Tank)	344kg
Coolant Volume	1500L
Max Inlet/Outlet Temp	45/65°C
Max Power Load	16kW
Network	100Mbps Ethernet switch
Pipe Diameter	DN65
Dry Cooler	FHDC240

Dry Cooler (EC Fan)
Model	FHDC240
Cooling Capacity	240kW
Circulation Medium	Oil
Input Voltage	3-phase 350-480V 50/60Hz
Max Power Load (kW)	8
Max Inlet/Outlet Temp (°C)	40/45
Reference Temperature (°C)	35
Total Air Volume (m³/h）	56000
Dimensions (mm)	252022002160
Noise Level @25°C, 16m	68
Shipping Weight (kg)	1110
Operating Pressure (MPa)	0.3
